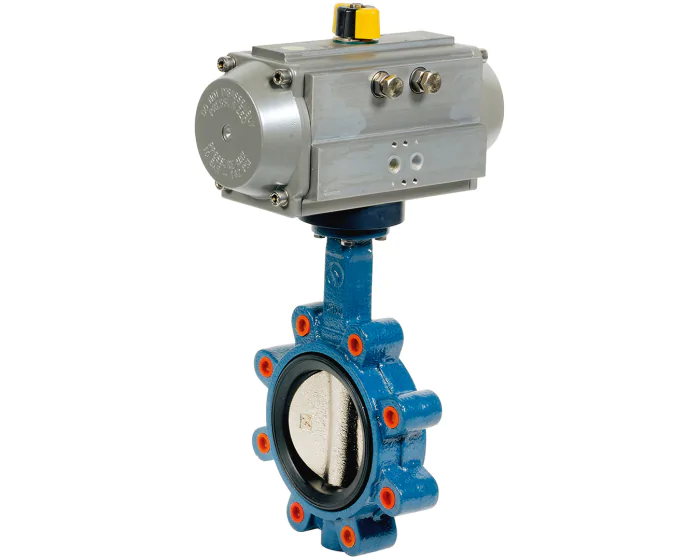

The 1133 lug butterfly valve has a ductile iron GL body, a stainless steel 1.4408 disc and an EPDM seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar. Mounting between flanges PN10/16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN40 - 1''1/2 |
| Seat | EPDM |
| Body material | Ductile iron |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Lug |
| CE | Risk category III |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Double acting | 262603017006R | S1001250 |
€194.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN40 - 1''1/2 Spring return | 262603017107R | S1001251 |
€247.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Double acting | 262604017006R | S1001252 |
€194.13
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN50 - 2'' Spring return | 262604017107R | S1001253 |
€247.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Double acting | 262605017007R | S1001254 |
€224.31
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN65 - 2''1/2 Spring return | 262605017108R | S1001255 |
€298.86
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Double acting | 262606017007R | S1001256 |
€236.29
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN80 - 3'' Spring return | 262606017108R | S1001257 |
€304.27
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Double acting | 262607017008R | S1001258 |
€286.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN100 - 4'' Spring return | 262607017110R | S1001259 |
€472.21
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Double acting | 262608017008R | S1001260 |
€322.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN125 - 5'' Spring return | 262608017110R | S1001261 |
€477.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Double acting | 262609017009R | S1001262 |
€401.74
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN150 - 6'' Spring return | 262609017111R | S1001263 |
€637.39
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Double acting | 262610017010R | S1001264 |
€594.36
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric DN200 - 8'' Spring return | 262610017112R | S1001265 |
€839.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Double acting DN250 - 10'' | 262611017011R | S1001266 |
€1,064.27
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return DN250 - 10'' | 262611017113R | S1001267 |
€1,431.06
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Double acting DN300 - 12'' | 262612017012R | S1001268 |
€1,181.26
(excl. btw)
|
add to cart |
| Flanged PN10/16 Ductile iron Concentric Spring return DN300 - 12'' | 262612017115R | S1001269 |
€2,119.99
(excl. btw)
|
add to cart |
